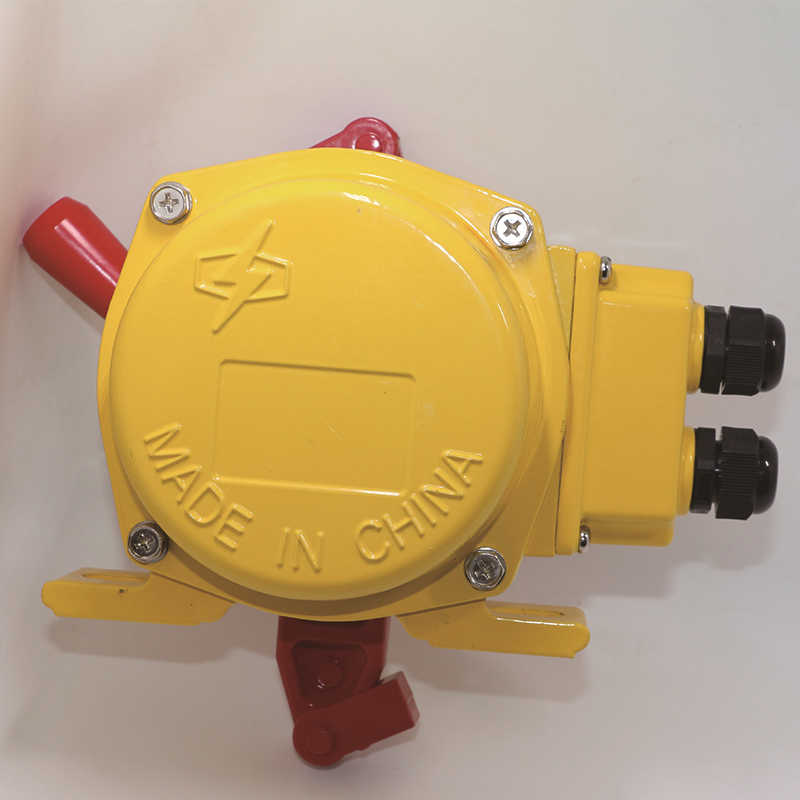

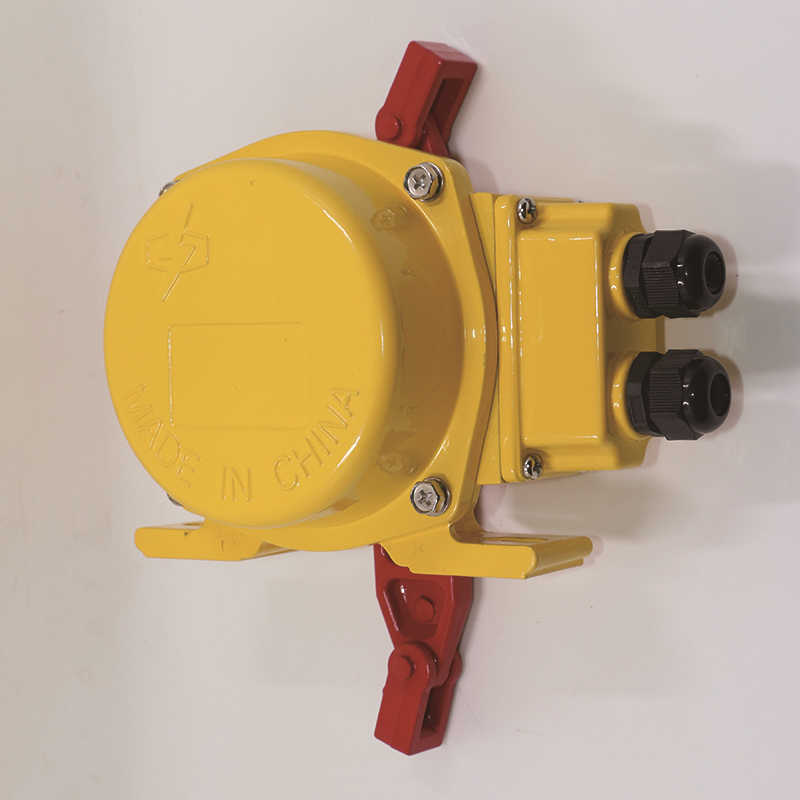

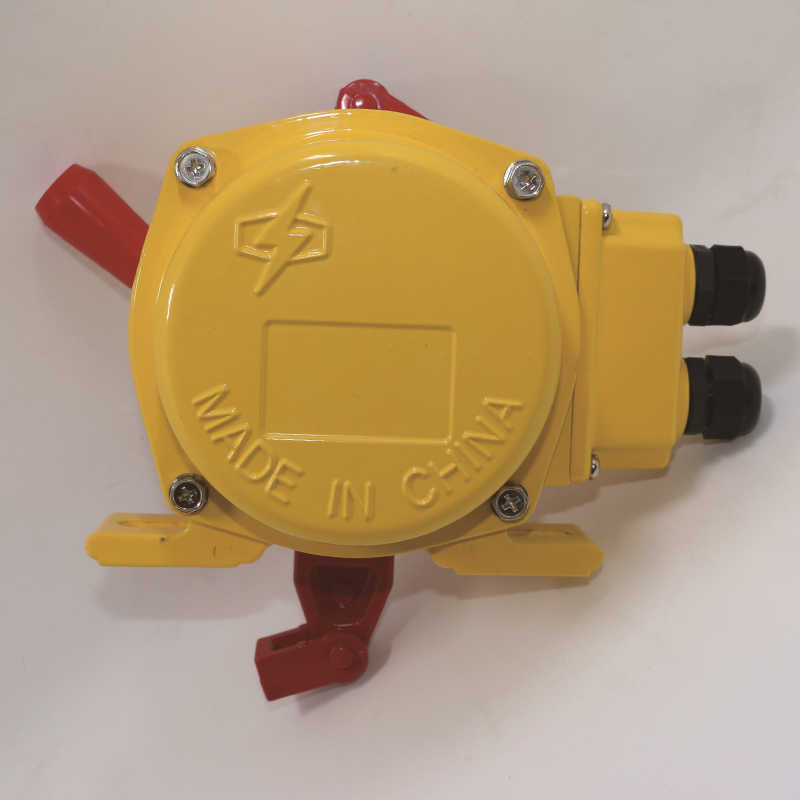

Equipped with junction box type LSKGT2- Ⅱ bidirectional rope switch

The built-in junction box type LSKGT2- Ⅱ bidirectional rope switch is used for emergency shutdown of tape conveyors in case of accidents. A waterproof junction box has been added to the original ordinary model, and on-site control cables can be directly connected to the junction box to prevent circuit faults caused by moisture and edge damage to the wire ends< Br/>
Action, output switch quantity, send out signals and stop signals. The reset mode I is automatic reset. After the tension of the pull rod is released, the cam structure automatically resets to its original state. Type II is manually reset, and the camshaft rotates to a certain angle and self-locking position. The cam can only return to its original state after manually resetting the handle. This device adopts a waterproof and dustproof sealing design, which effectively prevents water and dust from entering the casing< Br/>




Structural characteristics
1. This product adopts aluminum alloy casting shell, with high strength and light weight< Br/>
2. The switch adopts a travel switch with large contact capacity, sensitive action, long service life, and good sealing performance< Br/>
3. The shell can achieve long-term operation in harsh environments< Br/>
4. This product has sensitive movements, high stability, and reliable performance


Technical parameters

AC voltage: 220V; Plum; 15 (voltage range: 190V~250V)

Load current:&le& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp< Br/>
Insulation resistance:> 500M&Omega< Br/>
Action detection distance:≤ 10mm& Nbsp< Br/>
Output signal: switch signal

Action force: 50; Plum; 10N& Nbsp& Nbsp& Nbsp& Nbsp< Br/>
Action itinerary: 50& Plum; 2mm

Working temperature: -20 ℃~+70 ℃& Nbsp< Br/>
Working humidity: 93; Plum; 2

Reset method: manual reset& Nbsp& Nbsp& Nbsp< Br/>
Response time:< 2mS

Protection level: IP66& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp< Br/>
Product weight: 1.4Kg
