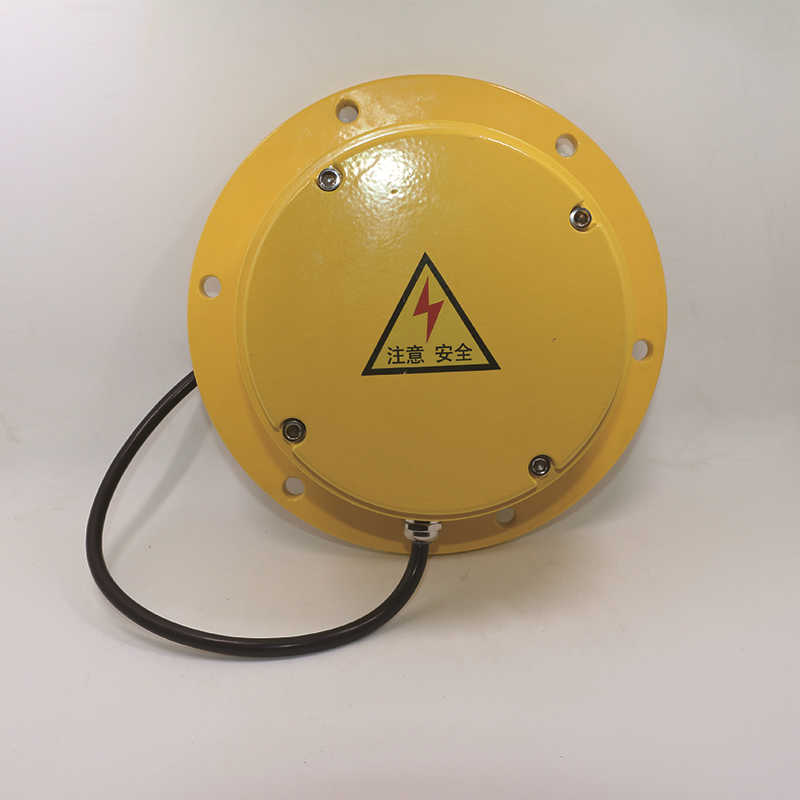

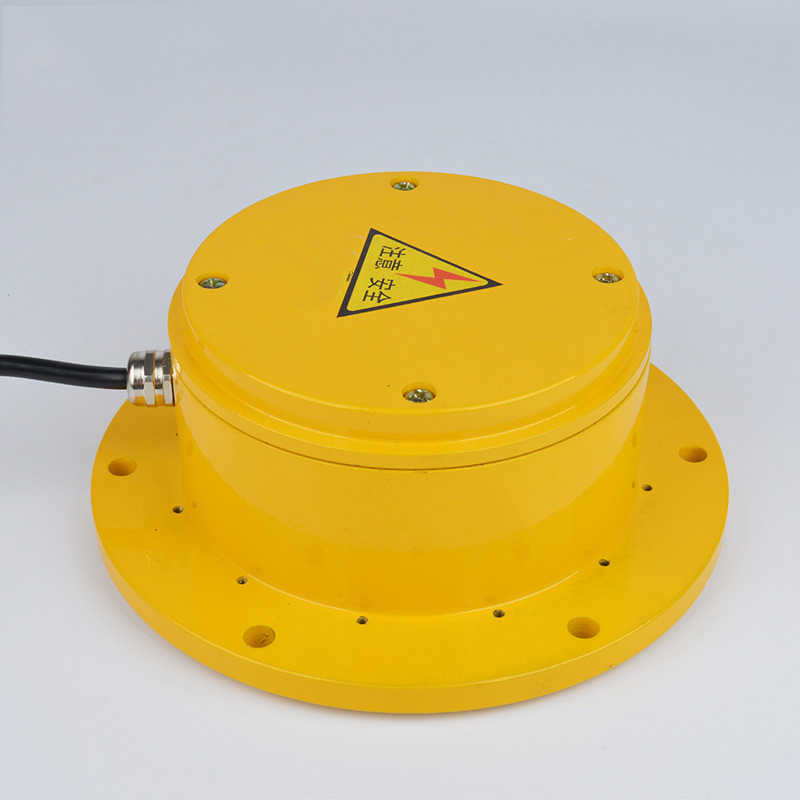

The ZXLDM-Y circular chute blockage switch consists of a detection plate and a limit switch, with a simple structure and quick response. When the chute is blocked, the detection board is squeezed by the material, tilts outward, triggers the limit switch, and sends a stop or signal. After the chute is cleared, the switch will automatically reset. Installed on the side wall of the chute parallel to the conveyor belt. Sensitivity can be adjusted, and the detection force at the front end of the detection board can be adjusted from 9.8 to 14.7N, which can detect small particles and blocky materials< Br/>




Working principle:

When there is too much accumulation of objects in the funnel or chute and the objects are too large and unobstructed, causing blockage in the chute, the accumulated materials give a certain pressure to the side wall of the funnel. The movable door installed on the funnel or chute opens under the pressure, causing the travel switch to act, issuing a stop signal, and resetting the switch after troubleshooting. The chute blockage detection device is a gate structure with a pressure spring reset function. The outer shell is made of iron plate and has been painted and anti-corrosion treated to be outdoor type. The overall structure is reasonable and the performance is reliable& Nbsp< Br/>
The ZXLDM-Y circular chute blockage switch is a product that detects whether the chute is blocked. But when there is a blockage in the chute, this product can promptly send a switch signal. On site personnel can take timely measures to prevent material blockage in the chute from causing serious accidents< Br/>




Product features< Br/>
Easy to install< Br/>
The shell has a high level of protection and good sealing performance< Br/>
The surface of the shell has been sprayed with plastic, which has strong corrosion resistance< Br/>
Suitable for detecting various materials< Br/>
Easy to operate and maintain< Br/>
Construction features:< Br/>
This machine uses an aluminum die-casting machine and a stainless steel casing to ensure rusting& Nbsp< Br/>
Adopting a side pressure movable door structure, the thrust of the pressure spring can automatically reset the movable door& Nbsp< Br/>
Exquisite appearance, good sealing, with a force of only 2Kg to trigger the switch< Br/>
External dimensions and installation instructions< Br/>
Drill holes at appropriate positions on the side walls of the chute, with a diameter of approximately 180-190mm, and fix the bottom plate at the opening. The installation position should avoid direct impact of materials as much as possible< Br/>
Purpose< Br/>
This device is widely used in industries such as grain, electricity, coal, cement, and petrochemicals, and is an ideal product for detecting blockages in silo chutes. The use of vibration motors can eliminate blockages and provide shutdown signals< Br/>
