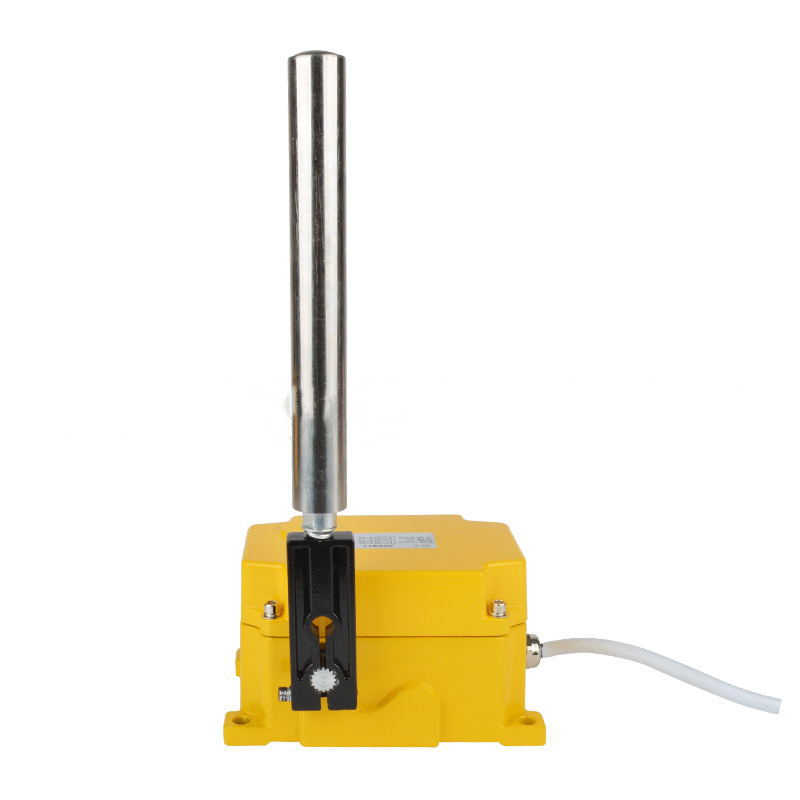

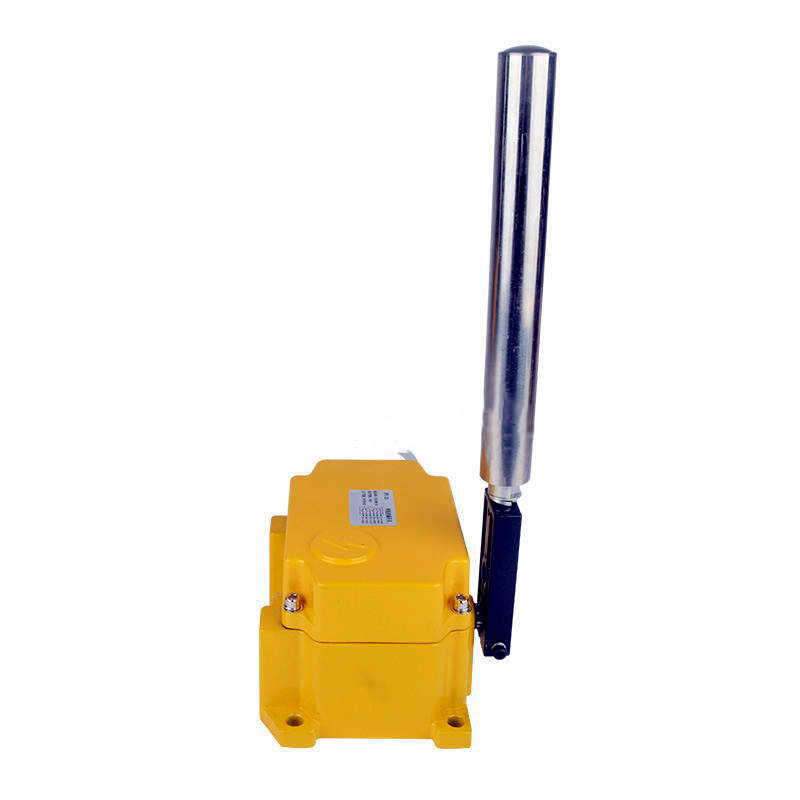

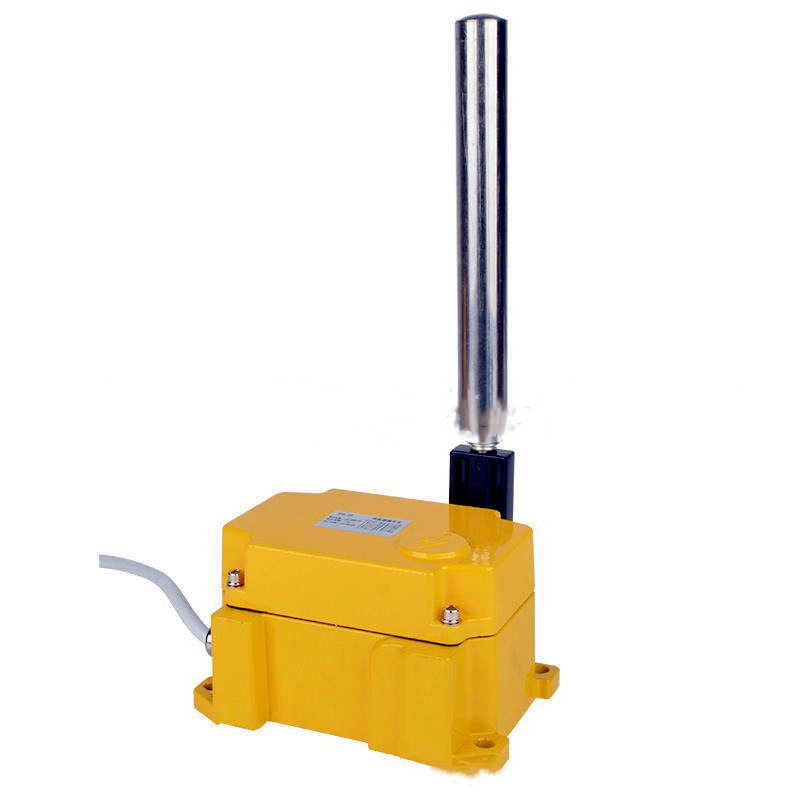

Two stage deviation switch HFKPT1-10-45

Detailed description:< Br/>
Overview of two-stage deviation switch: It can be used to detect the deviation of conveyor belts, preventing material overflow and other faults caused by belt deviation. It is an indispensable sensing element for conveyor automation control. This product is widely used in conveyor belts due to its convenient installation and reliable switching performance< Br/>
Technical parameters of two-stage deviation switch:< Br/>
Environmental conditions for use

a. Environmental temperature: -30 ℃~70 ℃

b. Relative humidity not exceeding 85%< Br/>
Model& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp; Action angle& Nbsp& Nbsp; Extreme angle& Nbsp& Nbsp; Output Method& Nbsp& Nbsp; Load current& Nbsp& Nbsp; Reset method& Nbsp& Nbsp; Reliability& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp; Weight (Kg)

&Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp; First level& Nbsp& Nbsp; Secondary& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp; Normally open& Nbsp& Nbsp; Normally closed

HFKPT1-12-30& Nbsp& Nbsp; 12°& Nbsp& Nbsp& Nbsp; 30°& Nbsp& Nbsp& Nbsp; 70°& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp; 1 & Nbsp& Nbsp; 1 & Nbsp& Nbsp; 5A& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp; Automatic Reset& Nbsp& Nbsp& Ge; 1000000 times& Nbsp& Nbsp; 2.5

HFKPT1-10-45& Nbsp& Nbsp; 10°& Nbsp& Nbsp& Nbsp; 45°& Nbsp& Nbsp& Nbsp; 70°& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp; 1 & Nbsp& Nbsp; 1 & Nbsp& Nbsp; 5A& Nbsp& Nbsp< Br/>
HFKPT1-20-35& Nbsp& Nbsp; 20°& Nbsp& Nbsp& Nbsp; 35°& Nbsp& Nbsp& Nbsp; 70°& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp; 1 & Nbsp& Nbsp; 1 & Nbsp& Nbsp; 5A







&Nbsp; The two-stage deviation switch can effectively prevent accidents caused by belt deviation. This series of deviation switches has a two-stage action function. The first level action is used for alarm, and the second level action is used for automatic shutdown. When the tape machine is running, when the tape deviates and comes into contact with the vertical roller of this switch, the vertical roller rotates. If the deviation continues to increase, the squeezing vertical roller will shift< Br/>
When the deflection angle of the vertical roller exceeds 20 degrees; When the first level switch is activated, it outputs an alarm signal. When the deflection angle of the vertical roller exceeds 35 degrees; When the second level switch is activated, it outputs a shutdown signal. Parameters: Voltage: 22V, 380V, current options: 2A, 3A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 15A

HFKPT1-12-30, HFKPT1-20-35,

XLPP-12-30, XLPP-20-45,

DPK-12-30, DPK-20-35,

DPK-10-45, DDP-LJ2,

DPP-K2/J, XLPP-1

HFKPT1-10-45
